Warenkorb ( )| Datenblatt | Foto | Mfr. Teil # | Lagerbestand | Preis | Menge | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datenblatt |
|

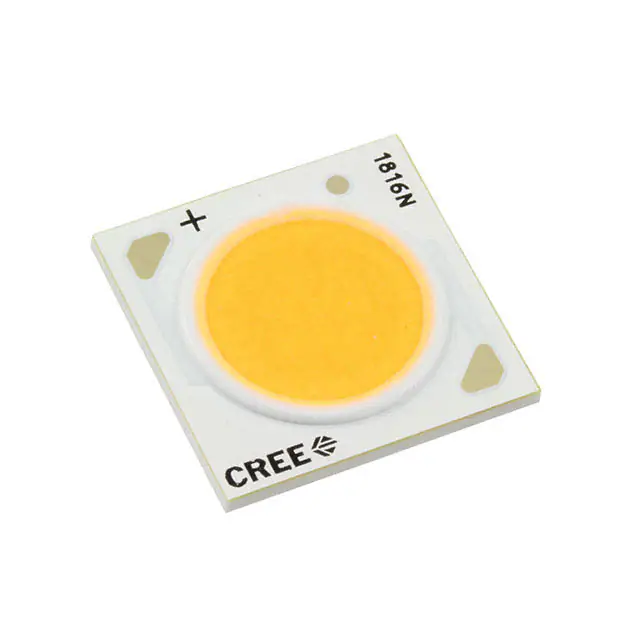

CXB1816-0000-000N0HQ457ELED COB CXB1816 5700K WHT SMD |
2515 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1816 | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 450mA | 85°C | 36V | 144 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXB1816-0000-000N0HQ465ELED COB CXB1816 6500K WHT SMD |
2109 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1816 | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 450mA | 85°C | 36V | 144 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1512-0000-000N0UK240HLED ARRAY XLAMP CXA1512 WHITE |
3002 | 4.18 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 37V | 96 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000N0UK450HLED ARRAY XLAMP CXA1512 WHITE |
2683 | 4.18 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 103 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000N0YH427HLED ARRAY XLAMP CXA1512 WHITE |
2411 | 4.18 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1010lm (970lm ~ 1040lm) | 350mA | 85°C | 37V | 80 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000N0YJ230HLED ARRAY XLAMP CXA1512 WHITE |
2003 | 4.18 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 37V | 83 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000F0UK240HLED COB CXA1512 NEUTRAL WHITE SQ |
2784 | 4.18 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 700mA | 85°C | 18V | 99 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000F0UK450HLED COB CXA1512 COOL WHT SQUARE |
3909 | 4.18 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 700mA | 85°C | 18V | 106 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000F0YH427HLED COB CXA1512 WARM WHT SQUARE |
3195 | 4.18 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1010lm (970lm ~ 1040lm) | 700mA | 85°C | 18V | 80 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000F0YJ230HLED COB CXA1512 WARM WHT SQUARE |
2248 | 4.18 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 700mA | 85°C | 18V | 86 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000F0YJ435HLED COB CXA1512 WARM WHT SQUARE |
3655 | 4.18 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 700mA | 85°C | 18V | 92 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA2530-0000-000N00U250FLED XLAMP CXA2530 WHT 19MM |
3530 | 4.20 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datenblatt |
|
CXA2530-0000-000N00U257FLED ARRAY XLAMP CXA2530 19MM WHT |
2686 | 4.20 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datenblatt |
|
CXA2530-0000-000N00U265FLED ARRAY XLAMP CXA2530 19MM WHT |
2841 | 4.20 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datenblatt |
|

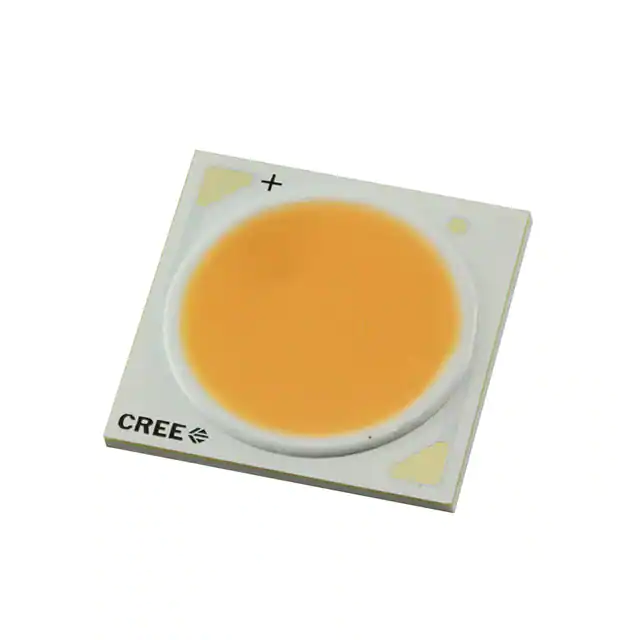

CXA1507-0000-000F0YE430FLED COB CXA1507 3000K WHITE SMD |
2146 | 4.22 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 658lm (635lm ~ 680lm) | 400mA | 85°C | 18V | 91 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1507-0000-000F0YF235FLED COB CXA1507 3500K WHITE SMD |
2207 | 4.22 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 705lm (680lm ~ 730lm) | 400mA | 85°C | 18V | 98 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1507-0000-000N0YE227FLED COB CXA1507 2700K WHITE SMD |
2597 | 4.22 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 200mA | 85°C | 36V | 85 lm/W | 375mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1507-0000-000N0YE430FLED COB CXA1507 3000K WHITE SMD |
2365 | 4.22 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 658lm (635lm ~ 680lm) | 200mA | 85°C | 36V | 91 lm/W | 375mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1507-0000-000N0YF235FLED COB CXA1507 3500K WHITE SMD |
2035 | 4.22 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 705lm (680lm ~ 730lm) | 200mA | 85°C | 36V | 98 lm/W | 375mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
| |
|
SMJD-2206024G-XXN100B22C038ALLHE 3030 LINEAR MODULE 24LED 5000 |
3077 | 4.23 |
In den WarenkorbJetzt anfragen |
Box | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
