Warenkorb ( )| Datenblatt | Foto | Mfr. Teil # | Lagerbestand | Preis | Menge | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datenblatt |
|
CXA1512-0000-000N0YH20E8LED ARRAY XLAMP CXA1512 WHITE |
2917 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 935lm (900lm ~ 970lm) | 350mA | 85°C | 37V | 72 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000N0YH230FLED ARRAY XLAMP CXA1512 WHITE |
2814 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 350mA | 85°C | 37V | 72 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000N0YH40E7LED ARRAY XLAMP CXA1512 WHITE |
3318 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1010lm (970lm ~ 1040lm) | 350mA | 85°C | 37V | 80 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000F0YG427FLED COB CXA1512 WARM WHT SQUARE |
2151 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 700mA | 85°C | 18V | 69 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000F0YH20E8LED COB CXA1512 WARM WHT SQUARE |
2799 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 935lm (900lm ~ 970lm) | 700mA | 85°C | 18V | 74 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000F0YH230FLED COB CXA1512 WARM WHT SQUARE |
3542 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 700mA | 85°C | 18V | 74 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1512-0000-000F0YH40E7LED COB CXA1512 WARM WHT SQUARE |
3314 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1010lm (970lm ~ 1040lm) | 700mA | 85°C | 18V | 80 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N00R40E5LED COB CXA1820 NEUTRAL WHITE SQ |
3945 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 37V | 132 lm/W | 1.05A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N0HR20E5LED COB CXA1820 NEUTRAL WHITE SQ |
3780 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 37V | 123 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|

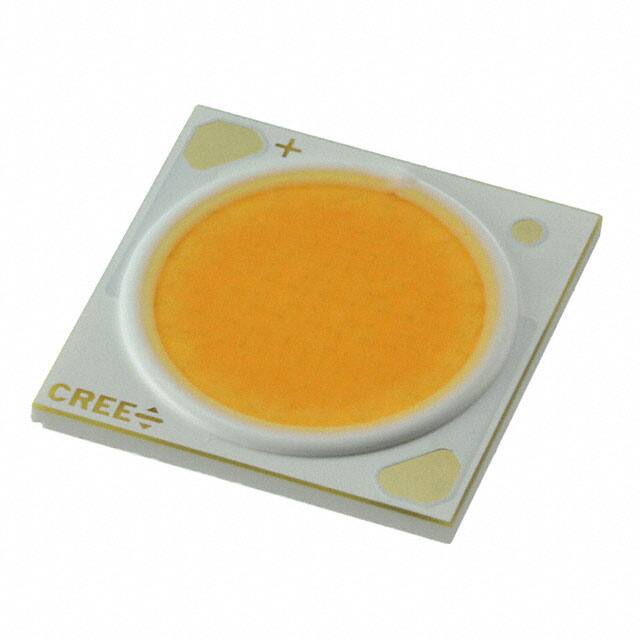

CXA1820-0000-000N00Q227GLED COB CXA1820 2700K WHITE SMD |
3068 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2180lm (2100lm ~ 2260lm) | 550mA | 85°C | 36V | 110 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N00Q430GLED COB CXA1820 3000K WHITE SMD |
4000 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N00Q435GLED COB CXA1820 3500K WHITE SMD |
2795 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N0HQ440GLED COB CXA1820 4000K WHITE SMD |
3975 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N0HR250GLED COB CXA1820 5000K WHITE SMD |
3488 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N0UP240GLED COB CXA1820 4000K WHITE SMD |
3518 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 550mA | 85°C | 36V | 96 lm/W | 1.05A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N0UP450GLED COB CXA1820 5000K WHITE SMD |
3123 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 550mA | 85°C | 36V | 103 lm/W | 1.05A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N0YM427GLED COB CXA1820 2700K WHITE SMD |
3063 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 550mA | 85°C | 36V | 78 lm/W | 1.05A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N0YN230GLED COB CXA1820 3000K WHITE SMD |
3944 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 550mA | 85°C | 36V | 83 lm/W | 1.05A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1820-0000-000N0YN435GLED COB CXA1820 3500K WHITE SMD |
2530 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 550mA | 85°C | 36V | 89 lm/W | 1.05A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXB1816-0000-000N0HQ450ELED COB CXB1816 5000K WHT SMD |
2821 | 4.17 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1816 | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 450mA | 85°C | 36V | 144 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
