Warenkorb ( )| Datenblatt | Foto | Mfr. Teil # | Lagerbestand | Preis | Menge | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datenblatt |
|
EEE-1CA101WPCAP ALUM 100UF 20% 16V SMD |
3163 | 0.54 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | S | Not For New Designs | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
EEE-1VA470WPCAP ALUM 47UF 20% 35V SMD |
3414 | 0.54 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | S | Not For New Designs | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
EEE-FK1H100URCAP ALUM 10UF 20% 50V SMD |
63047 | 0.54 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 63.75 mA @ 120 Hz | 85 mA @ 100 kHz | 1.52 Ohms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
Datenblatt |
|
EEE-FK1V220RCAP ALUM 22UF 20% 35V SMD |
3583 | 0.54 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK | Active | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
Datenblatt |
|
UWT1E101MCL1GSCAP ALUM 100UF 20% 25V SMD |
3670 | 0.52 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWT | Active | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 136.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
EEE-FC1E330PCAP ALUM 33UF 20% 25V SMD |
159924 | 0.56 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FC | Not For New Designs | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
EEE-FK1C101PCAP ALUM 100UF 20% 16V SMD |
3605 | 0.51 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
EEE-FK1H100PCAP ALUM 10UF 20% 50V SMD |
3012 | 0.51 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 123.8 mA @ 120 Hz | 165 mA @ 100 kHz | 880 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
UUD1E101MCL1GSCAP ALUM 100UF 20% 25V SMD |
2246 | 0.54 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UUD | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 140 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
EEE-1HA470XPCAP ALUM 47UF 20% 50V SMD |
2193 | 0.62 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | S | Not For New Designs | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | 178.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
EEE-1VA101XPCAP ALUM 100UF 20% 35V SMD |
2230 | 0.62 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | S | Not For New Designs | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 132 mA @ 120 Hz | 224.4 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
UUD1H470MCL1GSCAP ALUM 47UF 20% 50V SMD |
2569 | 0.58 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UUD | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 92.5 mA @ 120 Hz | 185 mA @ 100 kHz | 680 mOhms | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
UCD1H470MCL1GSCAP ALUM 47UF 20% 50V SMD |
2154 | 0.59 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCD | Not For New Designs | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 97.5 mA @ 120 Hz | 195 mA @ 100 kHz | 630 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
UCD1H470MCL6GSCAP ALUM 47UF 20% 50V SMD |
3063 | 0.65 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UCD | Not For New Designs | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 100 mA @ 120 Hz | 200 mA @ 100 kHz | 630 mOhms | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datenblatt |
|
EEE-FK1C101APCAP ALUM 100UF 20% 16V SMD |
2856 | 0.65 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
35ZLH330MEFCT810X12.5CAP ALUM 330UF 20% 35V RADIAL |
336663 | 0.58 |
In den WarenkorbJetzt anfragen |
Cut Tape (CT),Tape & Box (TB) | ZLH | Active | 330 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 731.5 mA @ 120 Hz | 1.33 A @ 100 kHz | 39 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
Datenblatt |
|

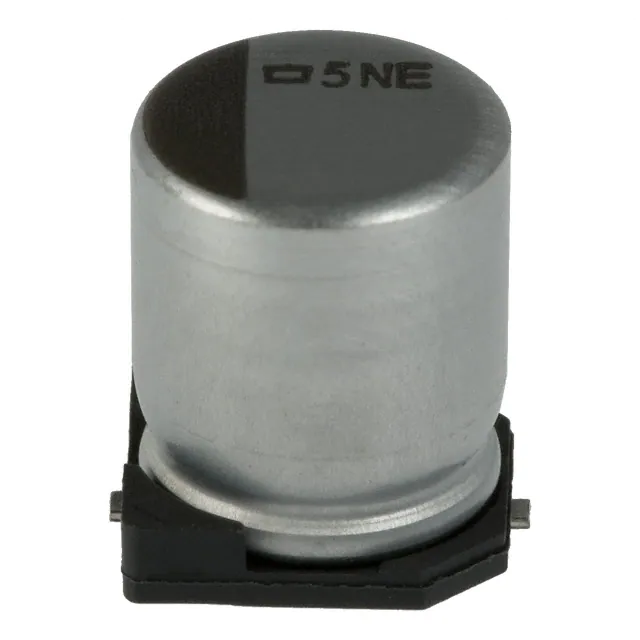

EMVE350ADA101MF80GCAP ALUM 100UF 20% 35V SMD |
3088 | 0.65 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Alchip™- MVE | Active | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | - | - | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
UWT0J102MNL1GSCAP ALUM 1000UF 20% 6.3V SMD |
2871 | 0.61 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | UWT | Active | 1000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 345 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
Datenblatt |
|
EEE-FK1H470XPCAP ALUM 47UF 20% 50V SMD |
3093 | 0.70 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 146.3 mA @ 120 Hz | 195 mA @ 100 kHz | 680 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
Datenblatt |
|
EEE-FK1V101XPCAP ALUM 100UF 20% 35V SMD |
2851 | 0.70 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | FK | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 210 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
