Warenkorb ( )| Datenblatt | Foto | Mfr. Teil # | Lagerbestand | Preis | Menge | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datenblatt |
|

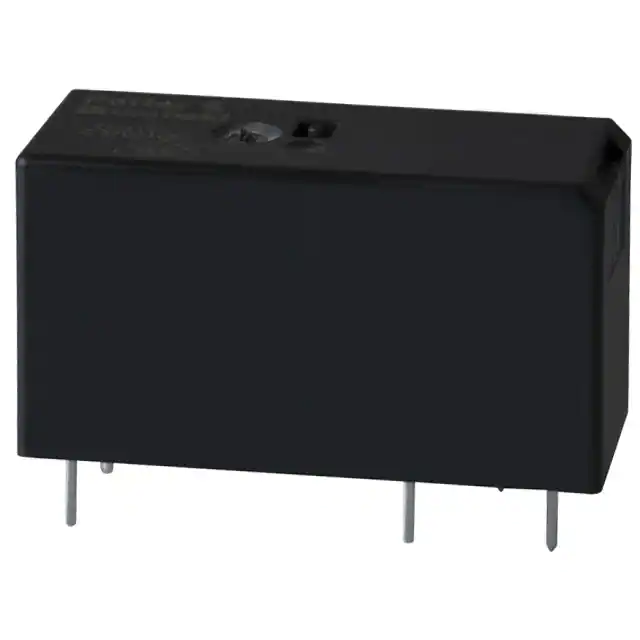

RTB14024FRELAY GEN PURPOSE SPDT 12A 24V |
3892 | 5.57 |
In den WarenkorbJetzt anfragen |
Box | RT1 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
Datenblatt |
|
G2R-1A-DC24RELAY GEN PURPOSE SPST 10A 24V |
3942 | 5.64 |
In den WarenkorbJetzt anfragen |
Tube,Box | G2R | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
Datenblatt |
|
G5RL-1-E-HR DC12RELAY GEN PURPOSE SPDT 16A 12V |
2034 | 5.65 |
In den WarenkorbJetzt anfragen |
Bulk | G5RL | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
Datenblatt |
|
ALFG1PF18RELAY GEN PURPOSE SPST 25A 18V |
2014 | 5.73 |
In den WarenkorbJetzt anfragen |
Bulk | ALFG | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 25 A | 250VAC - Max | 78 mA | Non Latching | - | PC Pin | - | Class F | 12.6 VDC | 1.8 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
Datenblatt |
|
4-1415536-2RELAY GEN PURPOSE SPST 16A 12V |
2343 | 5.75 |
In den WarenkorbJetzt anfragen |
Bulk,Bulk | RTH, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 105°C | Silver Nickel (AgNi) |
|
Datenblatt |
|
G5RL-1-E-HR DC24RELAY GEN PURPOSE SPDT 16A 24V |
3612 | 5.78 |
In den WarenkorbJetzt anfragen |
Bulk | G5RL | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
Datenblatt |
|
RT114524RELAY GEN PURPOSE SPDT 12A 24V |
3031 | 5.85 |
In den WarenkorbJetzt anfragen |
Tube | RT1, SCHRACK | Active | Through Hole | 24VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | - | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VAC | 3.6 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
Datenblatt |
|
DSP2A-DC24V-RRELAY GEN PURPOSE DPST 5A 24V |
2318 | 5.91 |
In den WarenkorbJetzt anfragen |
Bulk | DSP | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 12.5 mA | Non Latching | Reverse Polarity | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
Datenblatt |
|
RT33K024RELAY GEN PURPOSE SPST 16A 24V |
2496 | 6.28 |
In den WarenkorbJetzt anfragen |
Tube | RT1, Inrush, SCHRACK | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
Datenblatt |
|
T9AS1D12-9RELAY GEN PURPOSE SPST 30A 9V |
3529 | 6.30 |
In den WarenkorbJetzt anfragen |
Bulk | T9A | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 111 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
Datenblatt |
|
RT33L012RELAY GEN PURPOSE SPST 16A 12V |
2155 | 6.30 |
In den WarenkorbJetzt anfragen |
Tube | RT1, Inrush, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datenblatt |
|
ALFG2PF09RELAY GEN PURPOSE SPST 31A 9V |
2188 | 6.53 |
In den WarenkorbJetzt anfragen |
Bulk | ALFG | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 31 A | 250VAC - Max | 155 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
Datenblatt |
|
RE034012RELAY GEN PURPOSE SPST 6A 12V |
2476 | 6.58 |
In den WarenkorbJetzt anfragen |
Tube | RE, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
Datenblatt |
|
6-1419137-4RELAY GEN PURPOSE SPDT 25A 12V |
3815 | 6.72 |
In den WarenkorbJetzt anfragen |
Bulk | - | Active | Socketable | 12VDC | SPDT (1 Form C) | 25 A | 14VDC - Nom | 100.8 mA | Non Latching | Diode | Quick Connect - 0.187/0.250 | - | - | 7.2 VDC | 1.6 VDC | - | - | -40°C ~ 125°C | Silver (Ag) |
|
Datenblatt |
|
RTS3L005RELAY GEN PURPOSE SPST 16A 5V |
3648 | 6.75 |
In den WarenkorbJetzt anfragen |
Tube | RT1, Inrush, SCHRACK | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 80.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
Datenblatt |
|
G2R-2 DC9RELAY GEN PURPOSE DPDT 5A 9V |
2796 | 7.00 |
In den WarenkorbJetzt anfragen |
Tray | G2R | Active | Through Hole | 9VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 58.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 1.35 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
Datenblatt |
|
G6RN-1-AP4 DC24RELAY GEN PURPOSE SPDT 8A 24V |
3037 | 7.04 |
In den WarenkorbJetzt anfragen |
Bulk | G6RN | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 250VAC, 30VDC - Max | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy |
|
Datenblatt |
|

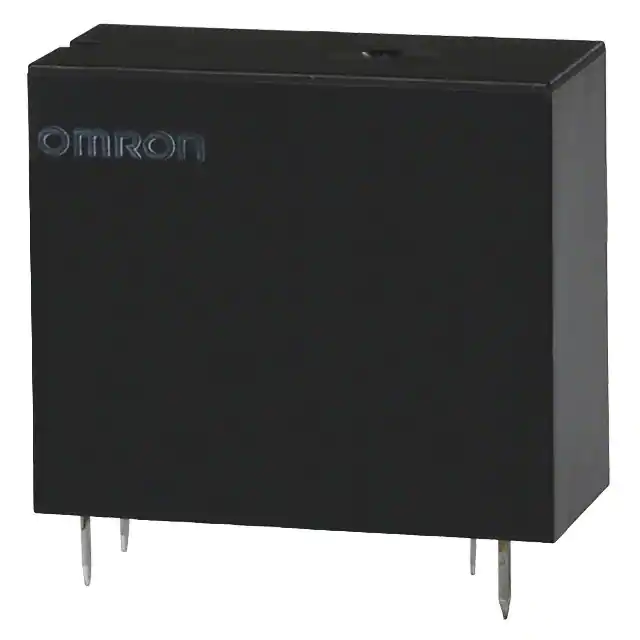

G2R-1A4-DC24RELAY GEN PURPOSE SPST 8A 24V |
2794 | 7.26 |
In den WarenkorbJetzt anfragen |
Tray | G2R | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
Datenblatt |
|
G6QE-1A DC5RELAY GEN PURPOSE SPST 32A 5V |
2861 | 7.27 |
In den WarenkorbJetzt anfragen |
Tray | G6QE | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 32 A | 277VAC - Max | 280 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.25 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free |
|
Datenblatt |
|
DSP1A-L2-DC9VRELAY GEN PURPOSE SPST 8A 9V |
3924 | 7.47 |
In den WarenkorbJetzt anfragen |
Bulk | DSP | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 30VDC - Max | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 7.2 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
