Warenkorb ( )| Datenblatt | Foto | Mfr. Teil # | Lagerbestand | Preis | Menge | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datenblatt |
|
CXB1507-0000-000F0UH240HLED COB CXB1507 NEUT WHT SQUARE |
3254 | 4.01 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 400mA | 85°C | 17.3V | 136 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXB1507-0000-000N0HH427HLED COB CXB1507 WARM WHT SQUARE |
2125 | 4.01 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 200mA | 85°C | 34.5V | 146 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXB1507-0000-000N0HH430HLED COB CXB1507 WARM WHT SQUARE |
2867 | 4.01 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 200mA | 85°C | 34.5V | 146 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXB1507-0000-000N0HJ235HLED COB CXB1507 WARM WHT SQUARE |
3956 | 4.01 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 200mA | 85°C | 34.5V | 156 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXB1507-0000-000N0HJ240HLED COB CXB1507 NEUT WHT SQUARE |
3181 | 4.01 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 200mA | 85°C | 34.5V | 156 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXB1507-0000-000N0UG227HLED COB CXB1507 WARM WHT SQUARE |
2038 | 4.01 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 200mA | 85°C | 34.5V | 117 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXB1507-0000-000N0UG430HLED COB CXB1507 WARM WHT SQUARE |
2648 | 4.01 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 200mA | 85°C | 34.5V | 126 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXB1507-0000-000N0UH235HLED COB CXB1507 WARM WHT SQUARE |
3125 | 4.01 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 200mA | 85°C | 34.5V | 136 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXB1507-0000-000N0UH240HLED COB CXB1507 NEUT WHT SQUARE |
3680 | 4.01 |
In den WarenkorbJetzt anfragen |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 200mA | 85°C | 34.5V | 136 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
Datenblatt |
|
CXA1816-0000-000N00M40E8LED COB CXA1816 WARM WHT SQUARE |
3027 | 4.03 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 1538lm (1485lm ~ 1590lm) | 450mA | 85°C | 37V | 92 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1816-0000-000N00N20E6LED COB CXA1816 WARM WHT SQUARE |
2095 | 4.03 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 1650lm (1590lm ~ 1710lm) | 450mA | 85°C | 37V | 99 lm/W | 900mA | - | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA1816-0000-000N00N20E7LED COB CXA1816 WARM WHT SQUARE |
3391 | 4.03 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1650lm (1590lm ~ 1710lm) | 450mA | 85°C | 37V | 99 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
Datenblatt |
|
CXA2520-0000-000N00R40E1LED ARRAY XLAMP CXA2520 19MM WHT |
2673 | 4.03 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.25A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datenblatt |
|
CXA2520-0000-000N00R40E2LED ARRAY XLAMP CXA2520 19MM WHT |
3190 | 4.03 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.25A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datenblatt |
|
CXA2520-0000-000N00R40E3LED ARRAY XLAMP CXA2520 19MM WHT |
3933 | 4.03 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.25A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datenblatt |
|
CXA2520-0000-000N0HR20E1LED ARRAY XLAMP CXA2520 19MM WHT |
2093 | 4.03 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datenblatt |
|
CXA2520-0000-000N0HR20E2LED ARRAY XLAMP CXA2520 19MM WHT |
2666 | 4.03 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datenblatt |
|
CXA2520-0000-000N0HR20E3LED ARRAY XLAMP CXA2520 19MM WHT |
3053 | 4.03 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
Datenblatt |
|

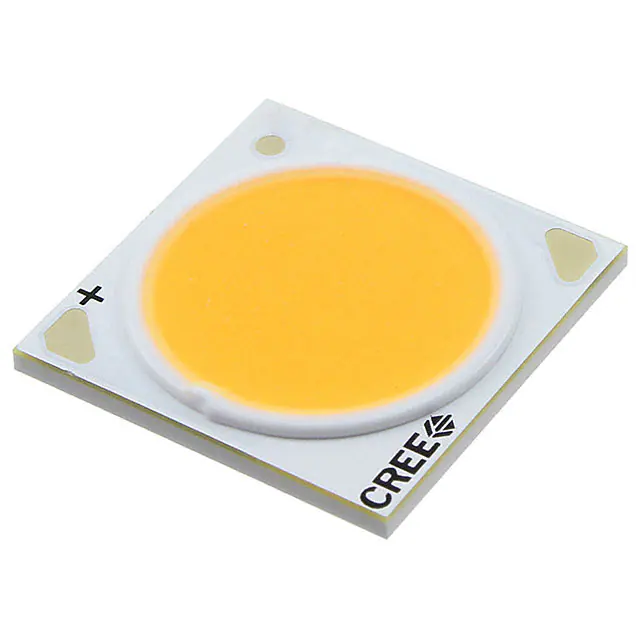

CXA1830-0000-000N00U250FLED COB CXA1830 COOL WHT SQUARE |
3268 | 4.05 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.4A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
Datenblatt |
|
CXA1830-0000-000N00U257FLED COB CXA1830 COOL WHT SQUARE |
3178 | 4.05 |
In den WarenkorbJetzt anfragen |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.4A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
