Warenkorb ( )| Datenblatt | Foto | Mfr. Teil # | Lagerbestand | Preis | Menge | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datenblatt |
|

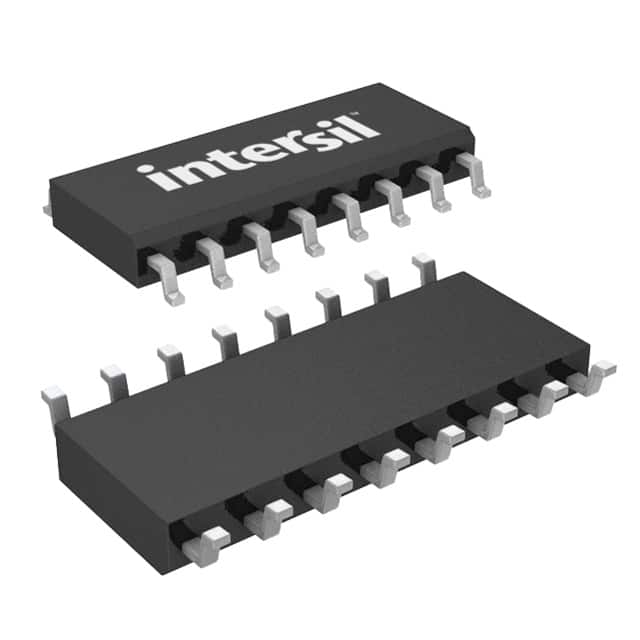

DG441DYZIC SWITCH QUAD SPST 16SOIC |
2532 | 2.94 |
In den WarenkorbJetzt anfragen |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NC | 1:1 | 4 | 85Ohm | - | 5V ~ 34V | ±5V ~ 22V | 250ns, 120ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
DG442DYZIC SWITCH QUAD SPST 16SOIC |
3448 | 2.97 |
In den WarenkorbJetzt anfragen |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NO | 1:1 | 4 | 85Ohm | - | 5V ~ 34V | ±5V ~ 22V | 250ns, 210ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
ADG904BRUZ-REEL7IC MULTIPLEXER 4X1 20TSSOP |
3644 | 6.26 |
In den WarenkorbJetzt anfragen |
20-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | SP4T | 4:1 | 1 | - | - | 1.65V ~ 2.75V | - | 10ns, 16ns | 2.5GHz | - | 2pF | 1µA | -58dB @ 100MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|

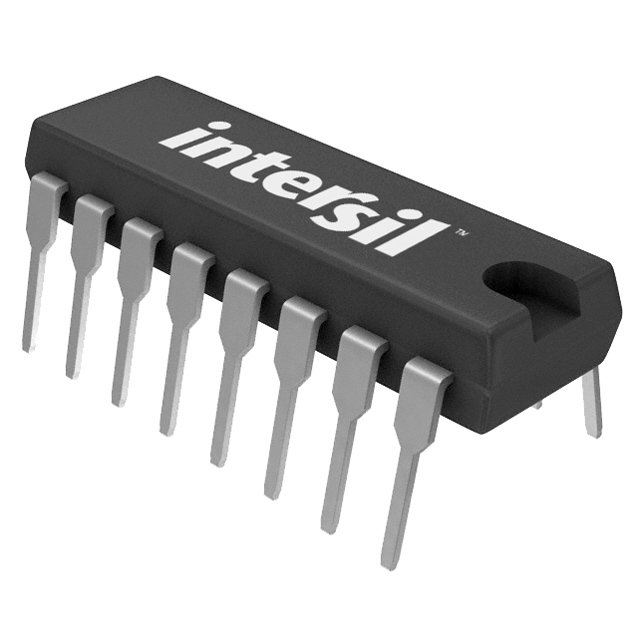

DG413DJZIC SWITCH QUAD SPST 16DIP |
3875 | 2.98 |
In den WarenkorbJetzt anfragen |
16-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
Datenblatt |
|
DG413DYZIC SWITCH QUAD SPST 16SOIC |
2446 | 3.00 |
In den WarenkorbJetzt anfragen |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
ADG722BRMZIC SWITCH DUAL SPST 8MSOP |
2602 | 1.00 |
In den WarenkorbJetzt anfragen |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk,Tube | - | Active | SPST - NC | 1:1 | 2 | 4Ohm | 300mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns (Typ) | 200MHz | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
| |
|
ADG4613BCPZ-REEL7IC SWITCH QUAD SPST 16LFCSP |
7644 | 6.40 |
In den WarenkorbJetzt anfragen |
16-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | - | Active | SPST - NO/NC | 1:1 | 4 | 5.1Ohm | 50mOhm | 3V ~ 12V | ±3V ~ 5.5V | 73ns, 91ns | 250MHz | 292pC | 11.5pF, 11.5pF | 10nA | -74dB @ 1MHz | -40°C ~ 105°C (TA) | Surface Mount |
|
Datenblatt |
|
ADG444BRZIC SWITCH QUAD SPST 16SOIC |
3673 | 3.46 |
In den WarenkorbJetzt anfragen |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NC | 1:1 | 4 | 70Ohm | - | 12V | ±15V | 110ns, 60ns | - | 1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
DG412DVZIC SWITCH QUAD SPST 16TSSOP |
2559 | 3.06 |
In den WarenkorbJetzt anfragen |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | SPST - NO | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
ADG738BRUZ-REELIC MUX/DEMUX 8X1 16TSSOP |
3776 | 6.46 |
In den WarenkorbJetzt anfragen |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 20ns, 10ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
ADG1604BCPZ-REELIC MULTIPLEXER 4X1 16LFCSP |
3204 | 6.54 |
In den WarenkorbJetzt anfragen |
16-VQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | SP4T | 4:1 | 1 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 95ns, 173ns | 19MHz | 125pC | 60pF, 270pF | 200pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
Datenblatt |
|
ADG787BRMZIC MUX/DEMUX DUAL 2X1 10MSOP |
2693 | 3.51 |
In den WarenkorbJetzt anfragen |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tube | - | Active | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
DG408DYZIC MULTIPLEXER 8X1 16SOIC |
3853 | 3.12 |
In den WarenkorbJetzt anfragen |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 5V ~ 34V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
MAX4522EUE+IC SWITCH QUAD SPST 16TSSOP |
3184 | 3.13 |
In den WarenkorbJetzt anfragen |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
DG506BEW-T1-GE3IC MUX ANA DUAL 16/8CH 28SOIC |
2361 | 5.36 |
In den WarenkorbJetzt anfragen |
28-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | - | 16:1 | 1 | 300Ohm | 10Ohm | 12V | ±5V ~ 20V | 250ns, 200ns | 114MHz | 1pC | 3pF, 13pF | 1nA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
Datenblatt |
|
ADG1611BRUZ-REELIC SWITCH QUAD SPST 16TSSOP |
2254 | 6.63 |
In den WarenkorbJetzt anfragen |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | SPST - NC | 1:1 | 4 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 156ns, 87ns | 38MHz | 170pC | 60pF, 60pF | 300pA | -110dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
Datenblatt |
|
ADG441BNZIC SWITCH QUAD SPST 16DIP |
2189 | 1.00 |
In den WarenkorbJetzt anfragen |
16-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | SPST - NC | 1:1 | 4 | 70Ohm | - | 12V | ±15V | 110ns, 60ns | - | 1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
Datenblatt |
|
ADG636YRUZ-REEL7IC SWITCH DUAL SPDT 14TSSOP |
2180 | 6.83 |
In den WarenkorbJetzt anfragen |
14-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Active | SPDT | 2:1 | 2 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 135ns, 80ns | 610MHz | -1.2pC | 5pF, 8pF | 100pA | -65dB @ 10MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
Datenblatt |
|
DG409DYZIC MULTIPLEXER DUAL 4X1 16SOIC |
2335 | 3.26 |
In den WarenkorbJetzt anfragen |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | 5V ~ 34V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
Datenblatt |
|
ADG1236YCPZ-REEL7IC SWITCH DUAL SPDT 12LFCSP |
3134 | 1.00 |
In den WarenkorbJetzt anfragen |
12-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk | - | Active | SPDT | 2:1 | 2 | 190Ohm | 3.5Ohm | 12V | ±15V | 150ns, 90ns | 1GHz | -1pC | 1.6pF | 100pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
