Warenkorb ( )| Datenblatt | Foto | Mfr. Teil # | Lagerbestand | Preis | Menge | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature - Junction | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datenblatt |
|
IDL12G65C5XUMA2DIODE SCHOTTKY 650V 12A VSON-4 |
7690 | 6.01 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | CoolSiC™+ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 360pF @ 1V, 1MHz | 0 ns | 190 µA @ 650 V | 650 V | 12A (DC) | -55°C ~ 150°C | 1.7 V @ 12 A |
|
Datenblatt |
|
IDH20G65C5XKSA2DIODE SCHOTKY 650V 20A TO220-2-1 |
1378 | 9.09 |
In den WarenkorbJetzt anfragen |
Tube | CoolSiC™+ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 590pF @ 1V, 1MHz | 0 ns | 210 µA @ 650 V | 650 V | 20A (DC) | -55°C ~ 175°C | 1.7 V @ 20 A |
|
Datenblatt |
|
BAT6202VH6327XTSA1DIODE SCHOTTKY 40V SC79-2 |
17149 | 0.52 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 0.6pF @ 0V, 1MHz | - | 10 µA @ 40 V | 40 V | 20mA (DC) | 150°C (Max) | 1 V @ 2 mA | |
|
Datenblatt |
|

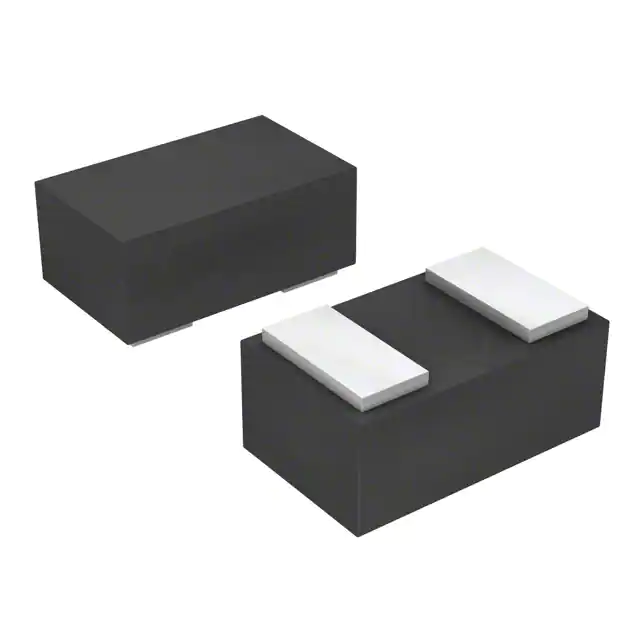

BAS3010S02LRHE6327XTSA1DIODE SCHOTTKY 30V 1A TSLP-2 |
34580 | 0.53 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 15pF @ 5V, 1MHz | - | 300 µA @ 30 V | 30 V | 1A | -55°C ~ 150°C | 650 mV @ 1 A | |
| |
|
AIDK10S65C5ATMA1DISCRETE DIODES |
3000 | 5.42 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
| |
|
AIDK12S65C5ATMA1DISCRETE DIODES |
2980 | 6.05 |
In den WarenkorbJetzt anfragen |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
Datenblatt |
|
AIDW12S65C5XKSA1DIODE SCHOTTKY 650V 12A TO247 |
235 | 4.63 |
In den WarenkorbJetzt anfragen |
Tube | Automotive, AEC-Q100/101, CoolSiC™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 363pF @ 1V, 1MHz | 0 ns | 70 µA @ 650 V | 650 V | 12A (DC) | -40°C ~ 175°C | 1.7 V @ 12 A |
|
Datenblatt |
|
IDW40E65D2FKSA1DIODE GEN PURP 650V 80A TO247-3 |
1049 | 3.22 |
In den WarenkorbJetzt anfragen |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 40 µA @ 650 V | 650 V | 80A | -40°C ~ 175°C | 2.3 V @ 40 A | |
|
Datenblatt |
|
IDW100E60FKSA1DIODE GEN PURP 600V 150A TO247-3 |
600 | 3.81 |
In den WarenkorbJetzt anfragen |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 120 ns | 40 µA @ 600 V | 600 V | 150A (DC) | -55°C ~ 175°C | 2 V @ 100 A | |
|
Datenblatt |
|
AIDW40S65C5XKSA1DIODE SCHOTTKY 650V 40A TO247 |
673 | 12.31 |
In den WarenkorbJetzt anfragen |
Tube | Automotive, AEC-Q100/101, CoolSiC™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1138pF @ 1V, 1MHz | 0 ns | 120 µA @ 650 V | 650 V | 40A (DC) | -40°C ~ 175°C | 1.7 V @ 40 A |
